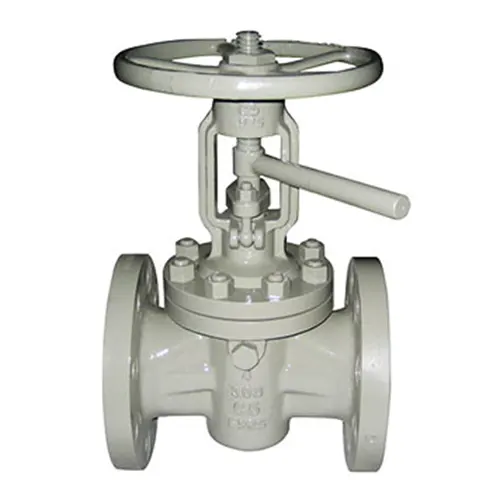

  • Lifting Plug Valve 2

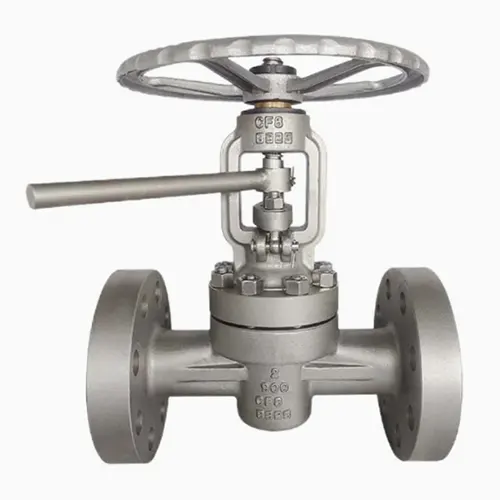

  • Lifting Plug Valve 3

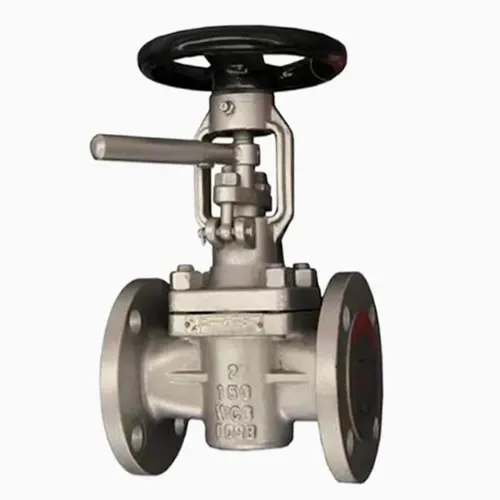

  • Lifting Plug Valve 4

Lifting Plug Valve

Size Range: DN15~600mm / NPS1/2"~24"

Pressure: PN0.6~25.0MPa / Class150~1500

Material: A105, LF2, F304, F316, F304L, F316L, F51, WCB, LCB, WCC, CF8, CF8M, CF3, CF3M, A890 4A etc

Operation: Manual, Worm Gear, Hydraulic, Electric, Pneumatic

Standard: ANSI, API, DIN, EAC, JIS, CE, ISO, EN, GB

Applications: Crude Oil Transportation, Natural Gas Pipelines, Refining Equipment, Chemical And Pharmaceutical, Steam Systems, Nuclear Power Cooling Water, Slurry Transportation, Water Treatment

Advantages: Low Operating Torque, Self-Cleaning Design, Excellent Sealing And Wear And Corrosion Resistance

Description

Lift Plug Valve is a high-performance valve that combines the characteristics of plug valve and gate valve. It realizes opening and closing through the unique "lift first and then rotate" design, and has the advantages of good sealing and small operating torque.

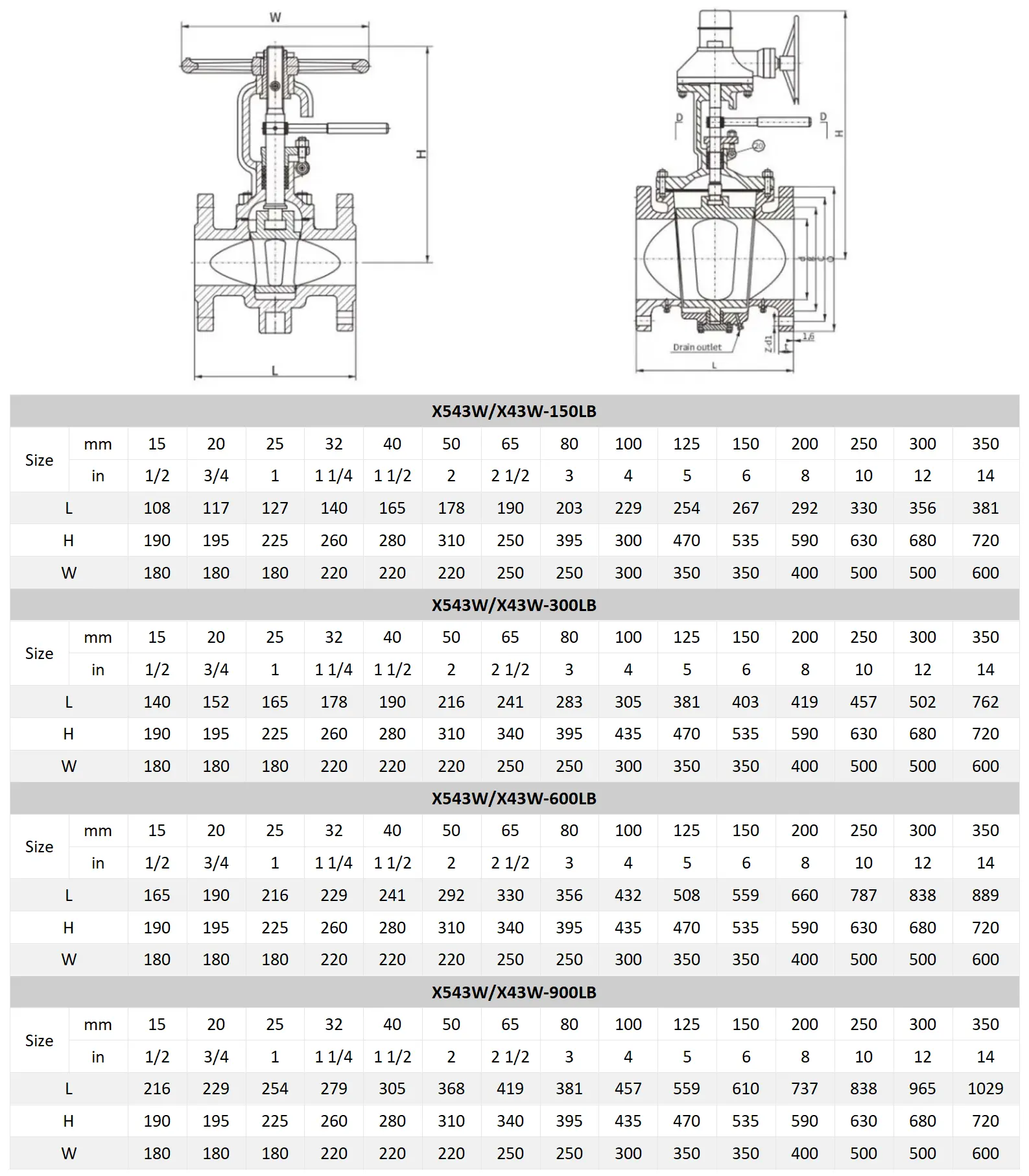

Technical Parameters

Lifting Plug Valve

Our Case Site

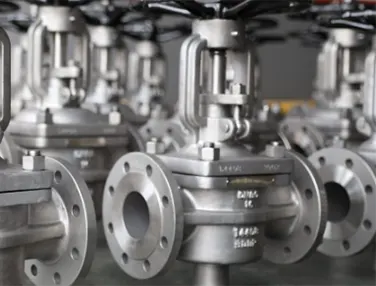

Lifting Plug Valve Case 1

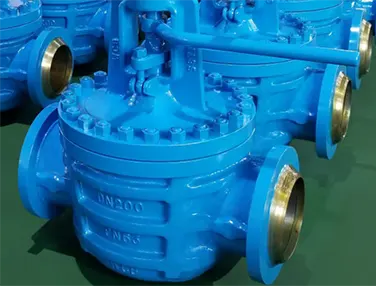

Lifting Plug Valve Case 2

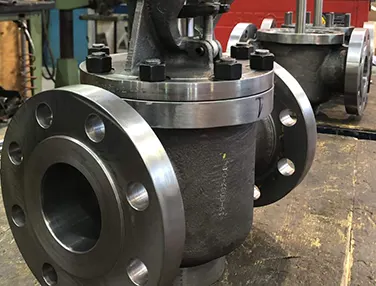

Lifting Plug Valve Case 3

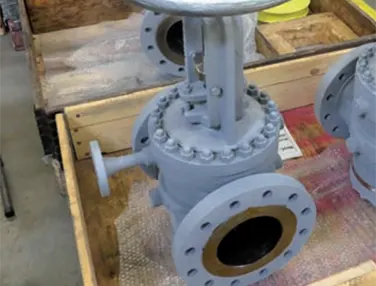

Lifting Plug Valve Case 4

Quality Control

Technological Innovation

Apply advanced computer simulation analysis technology

Quality Control

API 6D, CE certification, ISO 9001, ISO 14001, ISO 45001

Process Detection

Ensure the safety and reliability of the project system

Corporate Responsibility

Environmental Protection, make world sustainable

Production Process

Materials
Materials
Workshop
Workshop
Processing
Processing
Delivery
Delivery

Customer visits and exhibitions

ZZJG Valve Customer visits and exhibitions
ZZJG Valve Customer visits and exhibitions
ZZJG Valve Customer visits and exhibitions
ZZJG Valve Customer visits and exhibitions

Qualification Certificate

plug valve certifications
plug valve certifications
plug valve certifications
plug valve certifications
plug valve certifications
plug valve certifications

We also provide OEM Valve service to Your Specifications. Please send email or WhatsApp for quotation.
