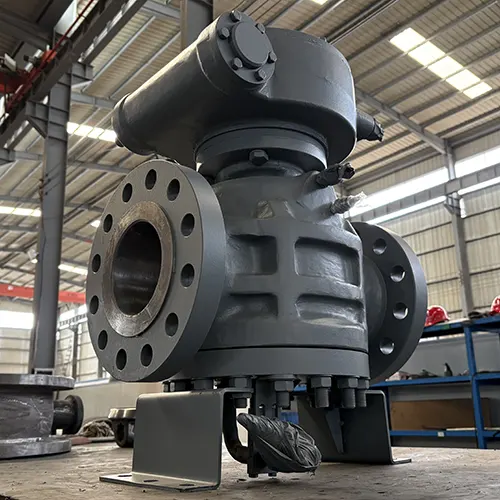

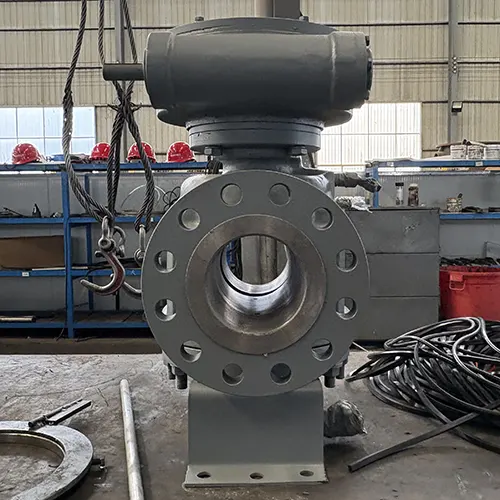

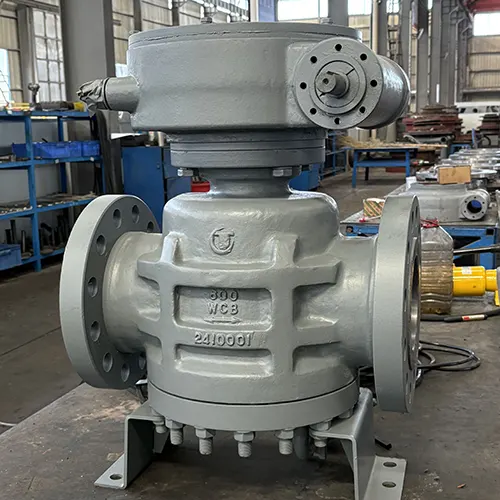

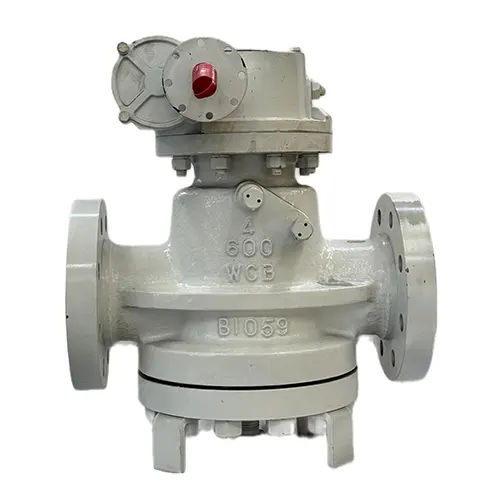

• Pressure Balance Plug Valve 1
  • Pressure Balance Plug Valve 2
  • Pressure Balance Plug Valve 3
  • Pressure Balance Plug Valve 4

Pressure Balance Plug Valve

Size Range: DN15~1000mm / NPS1/2"~40"

Pressure Ratings: PN0.6~42.0MPa / Class150~2500

Body Material: A105, LF2, F304, F316, F304L, F316L, F51, WCB, LCB, WCC, CF8, CF8M, CF3, CF3M, A890 4A etc

Operation: Manual, Worm Gear, Hydraulic, Electric, Pneumatic

Standard: ANSI, API, DIN, EAC, JIS, CE, ISO, EN, GB

Applications: Petroleum, Chemical Industry, Water Treatment, Gas Pipeline, High Temperature And High Pressure Steam System, Food, Medicine

Advantages: Good Sealing, Small Flow Resistance, Compact Structure, Fast Opening And Closing

Description

Pressure Balance Plug Valve is a valve designed for high pressure difference, high flow rate or severe working conditions. It significantly reduces the operating torque through a unique pressure balance structure and improves the sealing performance by using a self-tightening seal. Its typical features include a metal-soft seal composite structure, an optional lubrication system (meeting API 6D standards) and a double block and bleed (DBB) function. It is suitable for high-pressure pipelines, scaling media or extreme temperature environments in the fields of oil and gas, chemicals, energy, etc.

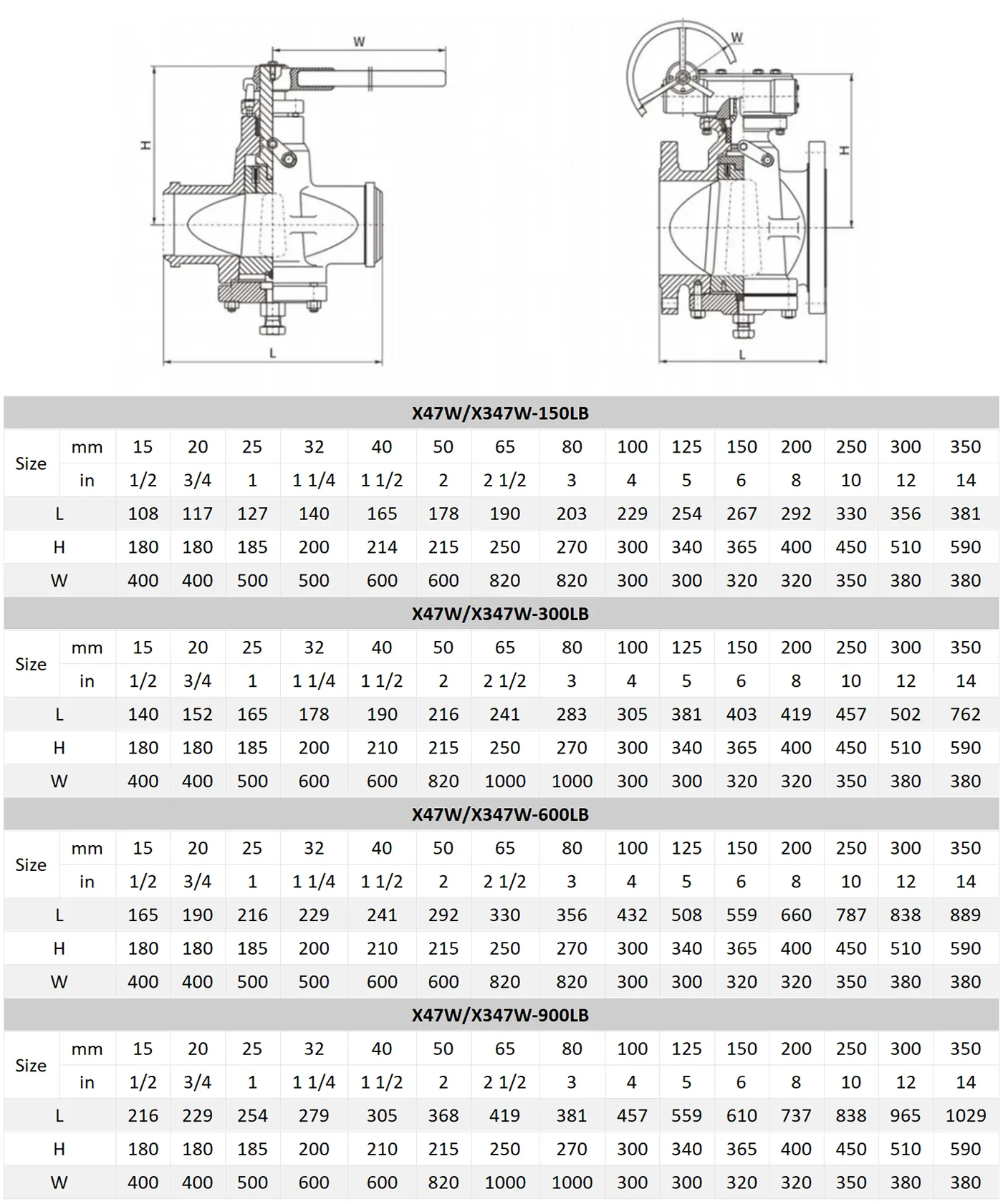

Technical Parameters

Pressure Balance Plug Valve

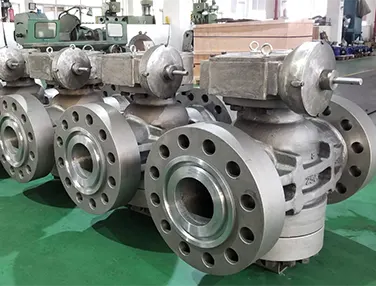

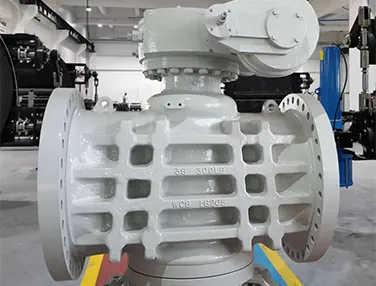

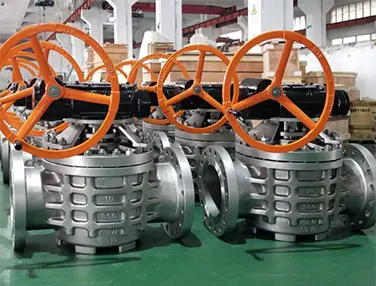

Our Case Site

Pressure Balance Plug Valve Case 1
Pressure Balance Plug Valve Case 2
Pressure Balance Plug Valve Case 3
Pressure Balance Plug Valve Case 4

Quality Control

Technological Innovation

Apply advanced computer simulation analysis technology

Quality Control

API 6D, CE certification, ISO 9001, ISO 14001, ISO 45001

Process Detection

Ensure the safety and reliability of the project system

Corporate Responsibility

Environmental Protection, make world sustainable

Production Process

Materials
Materials
Workshop
Workshop
Processing
Processing
Delivery
Delivery

Customer visits and exhibitions

ZZJG Valve Customer visits and exhibitions
ZZJG Valve Customer visits and exhibitions
ZZJG Valve Customer visits and exhibitions
ZZJG Valve Customer visits and exhibitions

Qualification Certificate

plug valve certifications
plug valve certifications
plug valve certifications
plug valve certifications
plug valve certifications
plug valve certifications

We also provide OEM Valve service to Your Specifications. Please send email or WhatsApp for quotation.
