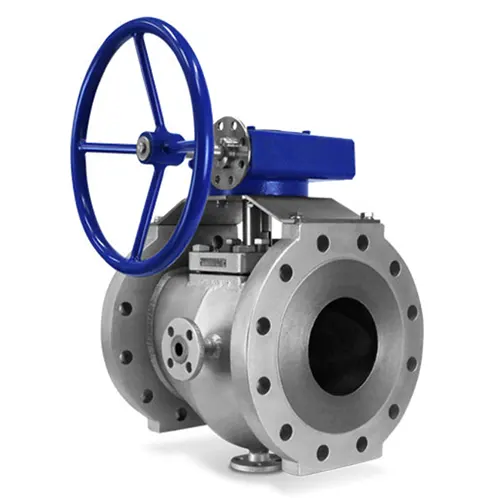

  • Jacket Sleeve Plug Valve 2

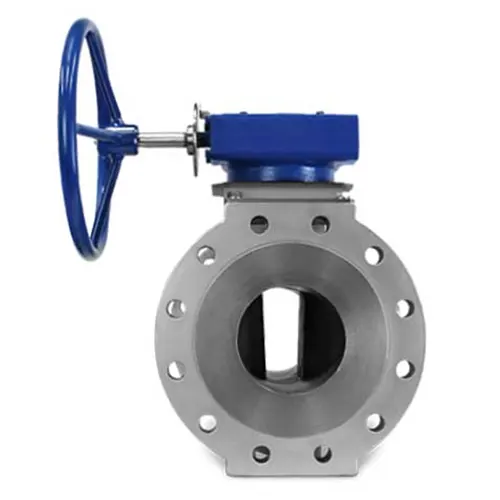

  • Jacket Sleeve Plug Valve 3
  • Jacket Sleeve Plug Valve 4

Jacket Sleeve Plug Valve

Size Range: DN15~900mm / NPS1/2"~36"

Pressure: PN2.0~26.0MPa / Class150~1500

Material: A105, LF2, F304, F316, F304L, F316L, F51, WCB, LCB, WCC, CF8, CF8M, CF3, CF3M, A890 4A etc

Operation: Manual, Worm Gear, Hydraulic, Electric, Pneumatic

Standard: ANSI, API, DIN, EAC, JIS, CE, ISO, EN, GB

Applications: Conveying High Temperature Easy To Solidify Crystal Media (Such As Molten Sulfur, Asphalt, Chocolate, Chemical Melts), Fluids Requiring Sanitary Insulation (Such As Syrup, Grease), Petroleum Energy, And Refrigeration Systems

Advantages: Anti-Freezing, Fast Operation, Adjustable Valve Body Temperature, Easy Maintenance

Description

Jacket Plug Valve is a specially designed valve with a jacket layer added to the outside of the valve body. It can circulate steam, thermal oil or other hot/cold media to maintain the temperature of the fluid in the valve and prevent the medium from solidifying or crystallizing. It is mainly used in industrial piping systems that require insulation or cooling.

Our Case Site

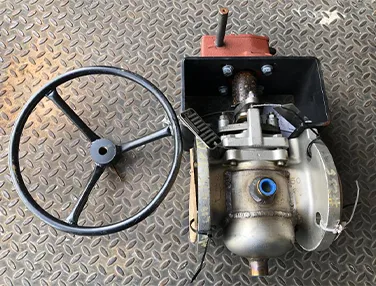

Jacket Sleeve Plug Valve Case 1

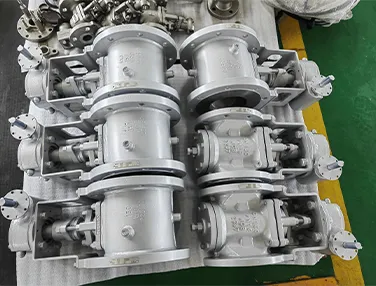

Jacket Sleeve Plug Valve Case 2

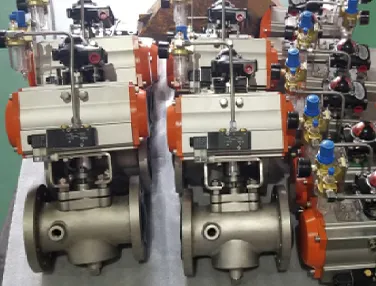

Jacket Sleeve Plug Valve Case 3

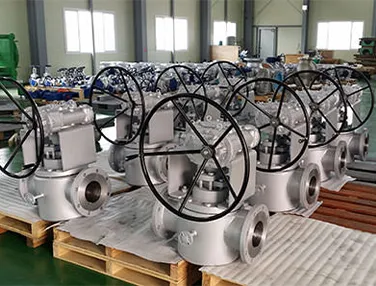

Jacket Sleeve Plug Valve Case 4

Quality Control

Technological Innovation

Apply advanced computer simulation analysis technology

Quality Control

API 6D, CE certification, ISO 9001, ISO 14001, ISO 45001

Process Detection

Ensure the safety and reliability of the project system

Corporate Responsibility

Environmental Protection, make world sustainable

Production Process

Materials
Materials
Workshop
Workshop
Processing
Processing
Delivery
Delivery

Customer visits and exhibitions

ZZJG Valve Customer visits and exhibitions
ZZJG Valve Customer visits and exhibitions
ZZJG Valve Customer visits and exhibitions
ZZJG Valve Customer visits and exhibitions

Qualification Certificate

plug valve certifications
plug valve certifications
plug valve certifications
plug valve certifications
plug valve certifications
plug valve certifications

We also provide OEM Valve service to Your Specifications. Please send email or WhatsApp for quotation.
