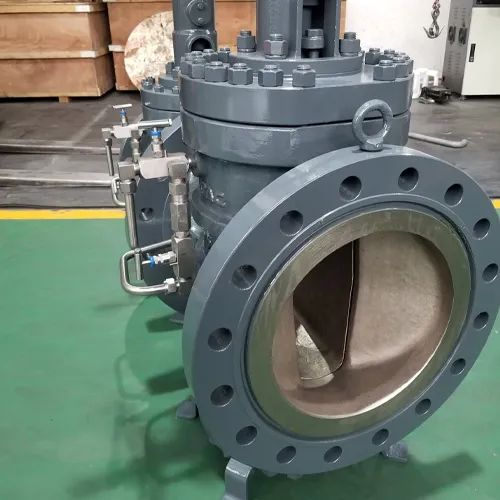

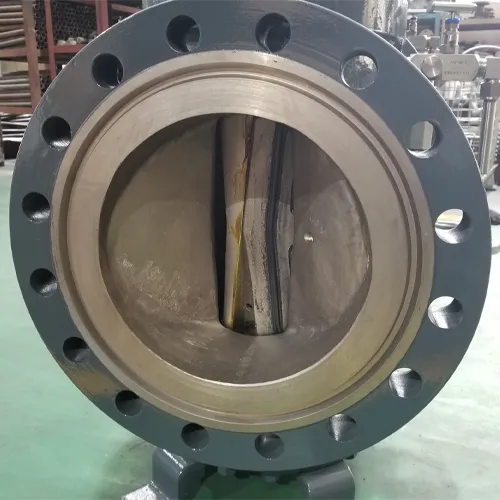

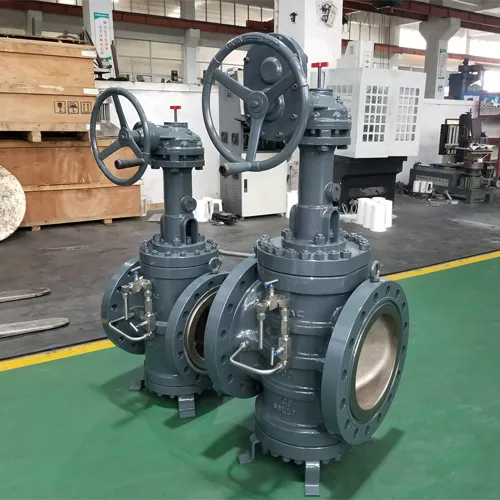

• Orbit Plug Valve 1
  • Orbit Plug Valve 2
  • Orbit Plug Valve 3
  • Orbit Plug Valve 4

Orbit Plug Valve

Size Range: DN50~900mm / NPS2"~36"

Pressure: PN0.6~15.0MPa / Class150~900

Material: A105, LF2, F304, F316, F304L, F316L, F51, WCB, LCB, WCC, CF8, CF8M, CF3, CF3M, A890 4A etc

Operation: Manual, Worm Gear, Hydraulic, Electric, Pneumatic

Standard: ANSI, API, DIN, EAC, JIS, CE, ISO, EN, GB

Applications: Oil And Gas, Chemical Industry, Electric Power, Boiler Feed Water, Steam System, Mining And Metallurgy, Harsh Working Conditions

Advantages: Low Operating Torque, Bidirectional Sealing, Wear And Corrosion Resistance, Fire Safety, Zero Leakage

Description

Orbit Plug Valve adopts a unique lifting + rotating motion design. This innovative structure enables it to have the advantages of low operating torque and long-life sealing. It is suitable for harsh working conditions such as high temperature, high pressure, corrosive or containing solid particles in petrochemical, power metallurgy, etc.

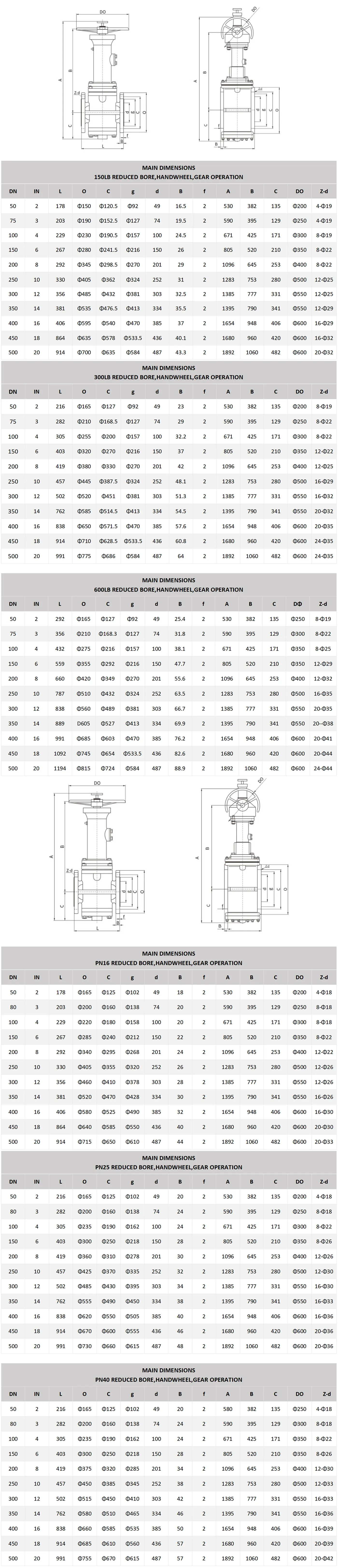

Technical Parameters

Orbit Plug Valve

Our Case Site

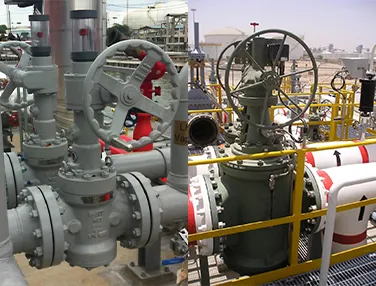

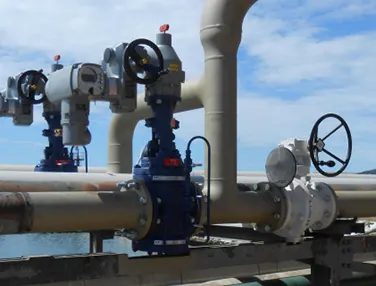

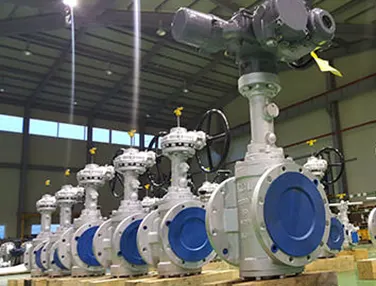

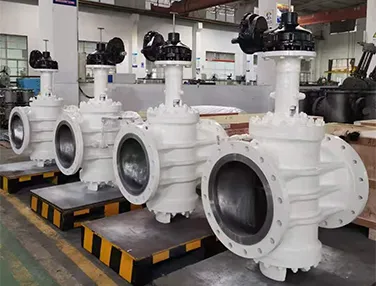

Orbit Plug Valve Case 1
Orbit Plug Valve Case 2
Orbit Plug Valve Case 3
Orbit Plug Valve Case 4

Quality Control

Technological Innovation

Apply advanced computer simulation analysis technology

Quality Control

API 6D, CE certification, ISO 9001, ISO 14001, ISO 45001

Process Detection

Ensure the safety and reliability of the project system

Corporate Responsibility

Environmental Protection, make world sustainable

Production Process

Materials
Materials
Workshop
Workshop
Processing
Processing
Delivery
Delivery

Customer visits and exhibitions

ZZJG Valve Customer visits and exhibitions
ZZJG Valve Customer visits and exhibitions
ZZJG Valve Customer visits and exhibitions
ZZJG Valve Customer visits and exhibitions

Qualification Certificate

plug valve certifications
plug valve certifications
plug valve certifications
plug valve certifications
plug valve certifications
plug valve certifications

We also provide OEM Valve service to Your Specifications. Please send email or WhatsApp for quotation.
