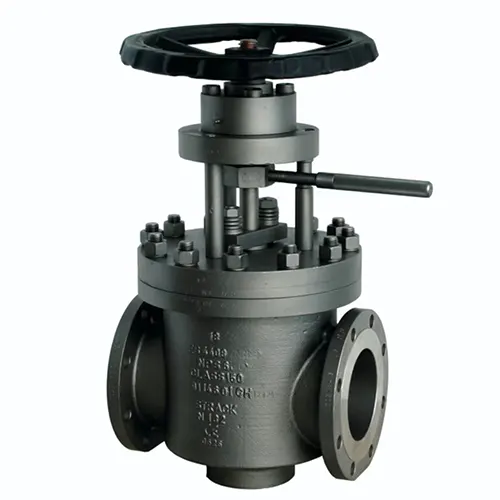

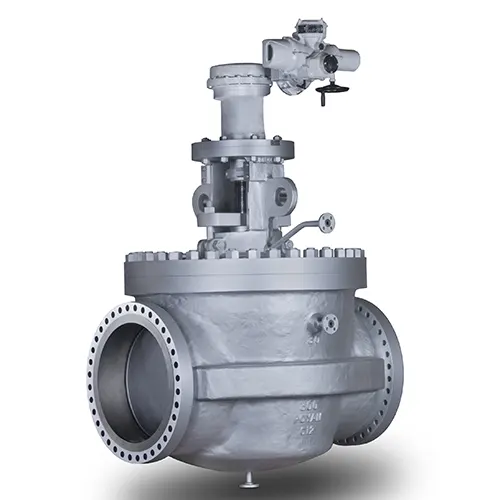

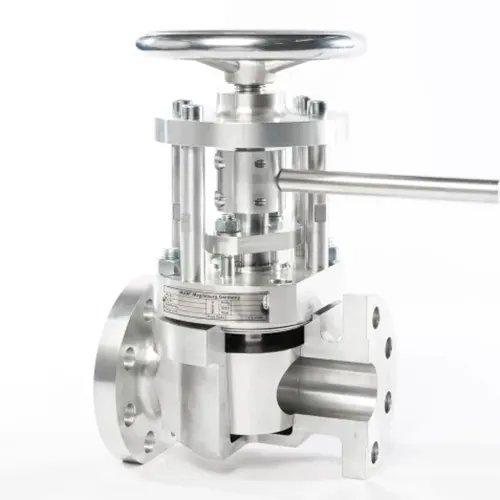

API Lift Plug Valve

Size Range: DN15~600mm / NPS1/2"~24"

Pressure: PN0.6~42.0MPa / Class150~2500

Material: A105､LF2､F304､F316､F304L､F316L､F51,WCB､LCB､WCC､CF8､CF8M､CF3､CF3M､A890 4A etc

Operation: Manual, Worm Gear, Hydraulic, Electric, Pneumatic

Standard: ANSI, API, DIN, EAC, JIS, CE, ISO, EN, GB

Applications: High-Temperature Hot Oil, Hydrocracking, Catalytic Cracking Units, Sour Gas And Crude Oil Pipelinesmain Steam And Reheat Pipelines, Bypass Systems For Thermal Power Plants, High-Temperature Coal Gas, Dust-Laden Media And Corrosive Fluids

Advantages: Low operating torque, self-cleaning design, excellent sealing and wear and corrosion resistance

Get Catalog [email protected]

Description

Lift-type plug valves are valves that, during opening and closing, first lift the plug away from the valve seat, then rotate it 90°, and finally lower it to compact and seal. They feature a full metal-to-metal seal (no soft seal or only an auxiliary one), solving the problems of high torque and easy abrasion of the sealing surface in traditional plug valves.

Features :

· Low opening and closing torque, frictionless rotation of the sealing surface, and long service life; Metal hard seal resistant to high temperature, high pressure, and media containing particles/erosion, and fireproof.
· Full bore, low pressure drop, and bidirectional sealing.
· Compact structure, with some models allowing for in-line replacement of the valve seat/plug.
