Dual Expanding Plug Valve
Size Range: DN50~900mm / NPS2"~36"
Pressure: PN0.6~15.0MPa / Class150~900
Material: A105､LF2､F304､F316､F304L､F316L､F51,WCB､LCB､WCC､CF8､CF8M､CF3､CF3M､A890 4A etc
Operation: Lever, Gear box, Electric, Pneumatic, hydraulic device, Pneumatic-hydraulic device
Standard: API, ANSI, DIN, EAC, JIS, CE, ISO, EN, GB
Applications: Oil And Gas, Chemical Industry, Electric Power, Boiler Feed Water, Steam System, Mining And Metallurgy, Harsh Working Conditions
Advantages: Low Operating Torque, Bidirectional Sealing, Wear And Corrosion Resistance, Fire Safety, Zero Leakage
Description
The double-seal structure of ZZJG VALVE Dual Expanding Plug Valve is not merely embodied in its double-disc design. More crucially, each disc’s sealing surface integrates both soft and hard sealing configurations, with the precision of the hard seal meeting or exceeding Class 4 standards. This dual-seal design not only guarantees zero leakage of the valve but also endows it with reliable fire-safe performance.
The superior sealing performance of ZZJG VALVE Dual Expanding Plug Valve effectively maintains the stable operation of connected pumps and eliminates the risk of air-lock induced flow interruption—a performance advantage repeatedly verified by our global customers.

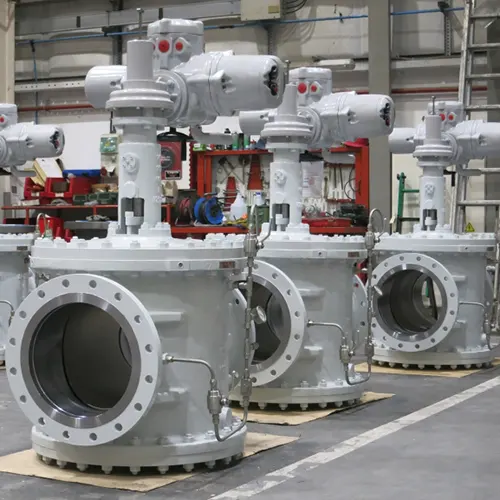

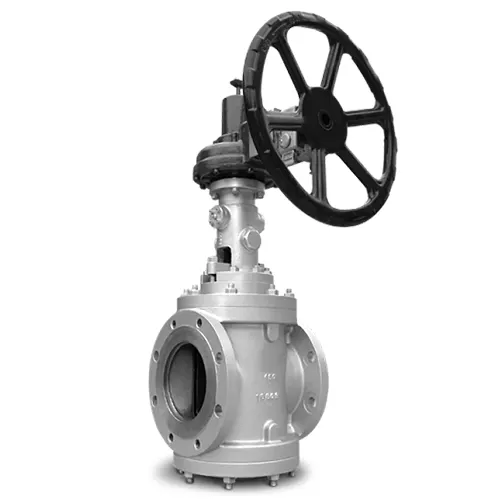

Dual Expanding Plug Valve Gallery
Technical Parameters
Quality Control
Apply advanced computer simulation analysis technology
API 6D, CE certification, ISO 9001, ISO 14001, ISO 45001
Ensure the safety and reliability of the project system
Environmental Protection, make world sustainable
Production Process
Customer visits and exhibitions
Qualification Certificate
