Eccentric Plug Valve in Industrial Water System

In industrial water supply, cooling water and wastewater treatment systems, valves need to operate stably for a long time. Valves should have excellent sealing performance, be easy to operate, and have a long service life. When the water contains impurities or particles, valves also need to have good wear resistance to ensure the normal operation of the system.

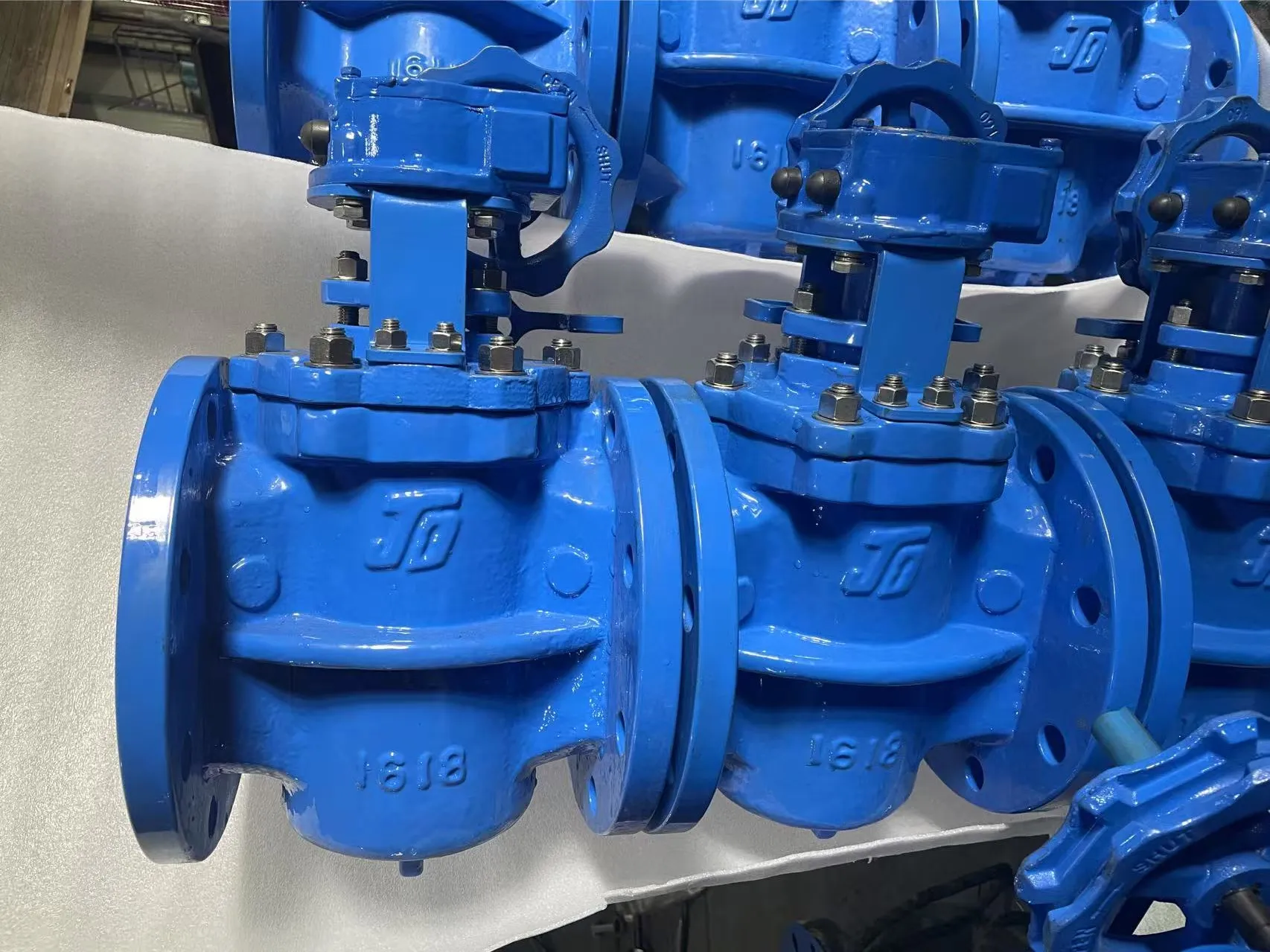

The ZZJG Eccentric Plug Valve adopts an eccentric structure design and uses reliable sealing mechanisms. This plug valve is easy to operate and simple to maintain, and can meet the requirements for long-term operation. The ZZJG Eccentric Plug Valve is mainly applied in industrial water systems, including circulating cooling water systems, water treatment plants, power plants, and large water transmission pipelines.



Project Background
The client's industrial water treatment project requires the installation of reliable shut-off valves for a large-scale circulating water pipeline system. This system is mainly used for equipment cooling, process water circulation, and wastewater treatment. The project demands that the valves be capable of operating stably for an extended period and meet the safety isolation requirements of the pipeline system.

The operating conditions required valves with:

After technical evaluation, ZZJG Eccentric Plug Valves were selected as key control valves for the water pipeline system.

Product Specifications

Advantages of Eccentric Plug Valve
1. Reduced Seal Wear with Eccentric Design
The eccentric structure allows the plug to move away from the sealing surface before rotation. This design minimizes friction between the plug and seat during operation, reducing wear and extending water pipeline valve service life.

Compared with conventional rotary valves, eccentric plug valves provide smoother operation and improved durability.

2. Reliable Sealing Performance
The Eccentric Plug Valve uses an elastic sealing structure to ensure tight shut-off between the plug and seat.
The reliable sealing performance makes it suitable for:

3. Excellent Performance in Water with Impurities
The industrial water system may contain sand, suspended matter and other particles. During operation, the eccentric plug valve will cause the plug to separate from the sealing seat, reducing the contact with the sealing surface. This can minimize the wear on the sealing surface and extend the service life of the valve.

Meanwhile, the valve adopts a full-channel flow design, which can reduce water resistance, lower pressure loss, and enhance the operational efficiency of the entire system.

4. Suitable for Large Diameter Pipelines
Eccentric plug valves are especially suitable for large-diameter water pipelines.

With gear operators or actuators, valves in sizes such as DN300, DN500, and larger can be operated smoothly and safely, meeting the requirements of large industrial projects.

Application Areas
Industrial Cooling Water System
Used in cooling towers, heat exchangers, and process cooling pipelines for reliable isolation and maintenance control.
Wastewater Treatment Plant
Applied in wastewater transportation, filtration systems, and pump stations where the medium may contain solid particles.
Power Plant Water System
Used in circulating water, cooling water, and auxiliary water systems to ensure stable operation of critical equipment.
Municipal Water Supply System
Suitable for large water transmission pipelines and distribution networks requiring reliable flow control.

ZZJG VALVE Reliable Eccentric Plug Valve Solution
ZZJG VALVE specializes in the design and manufacturing of industrial valves, providing Eccentric Plug Valves, Soft Seated Plug Valves, Oil Seal Plug Valves, and customized valve solutions for global customers.

Through optimized valve design and strict quality control, ZZJG VALVE delivers safe, reliable, and long-life flow control solutions for water treatment, energy, chemical, and industrial infrastructure projects.
