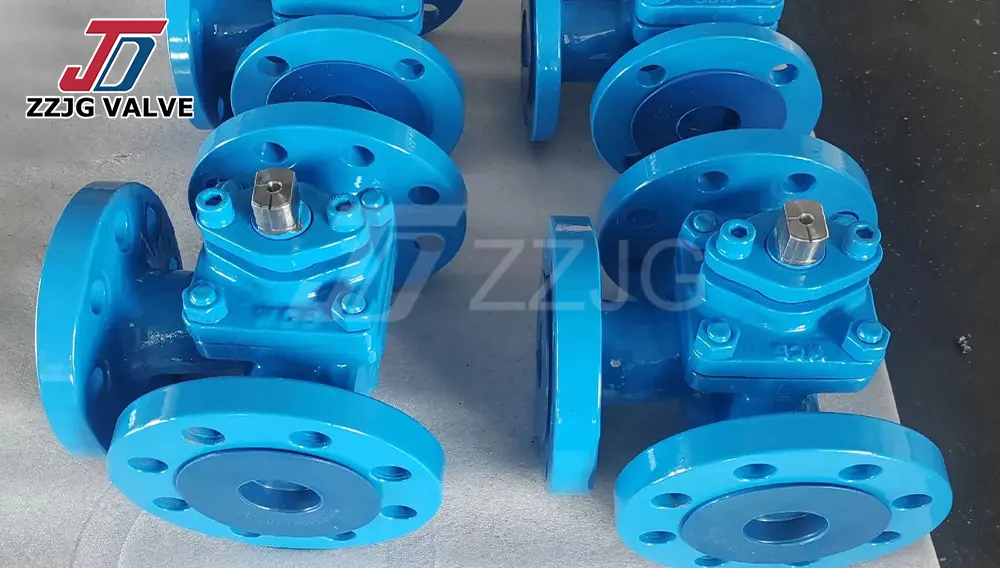

What Is a Three-way Plug Valve

1.What Is a Three-Way Plug Valve?
To understand a three-way plug valve in a nutshell, it is like a "pipe junction" that can be manually adjusted. By rotating the valve core, it controls which path the liquid or gas takes.

2. How Does It Work?
· Core component: A "plug" (valve core) with a channel.
· Basic action: A 90-degree rotation can change the flow direction.
· What functions can it achieve?
· L-shaped: Choose one of the two. One inlet and two outlets, allowing the fluid to flow out only from one of the outlets.
· T-shaped: Combine into one or split into two. It can mix two streams into one, or split one stream into two.



3. What Are The Common Types? How To Choose?

3.1 Consider the Function (Choose L-type or T-type?)
· L-type: Used for changing the flow direction. For example, adding material to tank A or tank B, only one can be connected at a time.
· T-type: Used for mixing or distribution. For instance, mixing cold water and hot water together, or distributing incoming materials to two different places.

3.2 Consider the medium (What is being transported?)
· Ordinary water/gas/oil: Cast iron will do; it offers good value for money.
· Corrosive liquids (such as acids and alkalis): Must use stainless steel.
· Very viscous or prone to solidification (such as asphalt, syrup): Choose ones with an insulation jacket to "wrap" the 3 way plug valve with a layer of insulation, using steam or heat transfer oil for insulation.
· Containing particle impurities: Need hard-sealed ones, with good wear resistance.

3.3 Check the operating conditions (Is the pressure and temperature within the normal range?)
·Normal pressure and temperature: Most conventional plug valves can be used.
· High temperature and high pressure: Select valves made of cast steel and with metal hard seals, as they are more durable.

3.4 Observe the operation (manual or automatic?)
· If it's not frequently operated and human intervention is sufficient: The contestant operates the wrench manually.
· If remote control is needed or frequent switching is required: Choose an electric or pneumatic option.

4. Where is it used?
· Chemical plant: Switching material pipelines between several reaction vessels.
· Food and pharmaceutical industry: Using stainless steel 3 way valves to ensure hygiene.
· Heating system: Switching the flow direction of hot water and regulating the temperature.
· Oil fields, gas filling stations: Controlling the diversion and convergence of oil or gas.

5. Installation and Maintenance Tips
· Before Installation: Clean the pipe opening thoroughly. Make sure to avoid dropping any welding slag or iron filings into it.
· Follow the Markings: Valves usually have arrows on the body indicating the flow direction. Don't install it in the wrong direction.
· Regular Inspection: Check periodically for any leaks or gas/oil leakage. Replace the seals when necessary.
